El enrutador de malla es un dispositivo que ofrece control parental, con una altura de 114 mm y estándares de Wi-Fi que incluyen 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) y Wi-Fi 6 (802.11ax). Cuenta con reenvío de puertos, dos puertos Ethernet LAN (RJ-45) y un tipo de antena interna. Ofrece seguridad con algoritmos WPA, WPA2 y WPA3, así como funciones de control parental como hora de dormir y filtros de contenido profesional. Con una cobertura máxima de 190 m², este enrutador de malla es ideal para hogares grandes.
| WIRELESS |
| Standards |
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds |
AX1500
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range |
1-2 Bedroom Houses (1-pack)
2-4 Bedroom Houses (2-pack)
3-5 Bedroom Houses (3-pack)TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
2× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
|
| WiFi Capacity |
High
Dual-Band
Distribute devices to different bands for optimal performance
2×2 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple WiFi 6 clients
4 Streams
More than enough bandwidth for connected devices
|
| Working Modes |
Router Mode
Access Point Mode |
| SEGURIDAD |
| Network Security |
SPI Firewall
Access Control |
| Guest Network |
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
| WiFi Encryption |
WPA-Personal
WPA2-Personal
WPA3-Personal |
| HARDWARE |
| Ethernet Ports |
2× Gigabit Ports
*Per Deco Unit
Supports WAN/LAN auto-sensing
|
| Botones |
Reset Button |
| SOFTWARE |
| Protocols |
IPv4
IPv6 |
| Parental Controls |
Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
|
| WAN Types |
Dynamic IP
Static IP
PPPoE
PPTP
L2TP |
| Quality of Service |
QoS by Device |
| Cloud Service |
OTA Firmware Upgrade
TP-Link ID
DDNS |
| NAT Forwarding |
Port Forwarding
UPnP |
| IPTV |
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN |
| DHCP |
Address Reservation
DHCP Client List
Server |
| DDNS |
TP-Link |
| Management |
Deco App |
| TEST DATA |
| WiFi Transmission Power |
CE:
<20 dBm (2.4 GHz)
<30 dBm (5 GHz)
FCC:
<30 dBm (2.4 GHz)
<30 dBm (5 GHz) |
| PHYSICAL |
| Dimensions (W×D×H) |
4.33 × 4.33 × 4.49 in
(110 × 110 × 114 mm) |
| Package Contents |

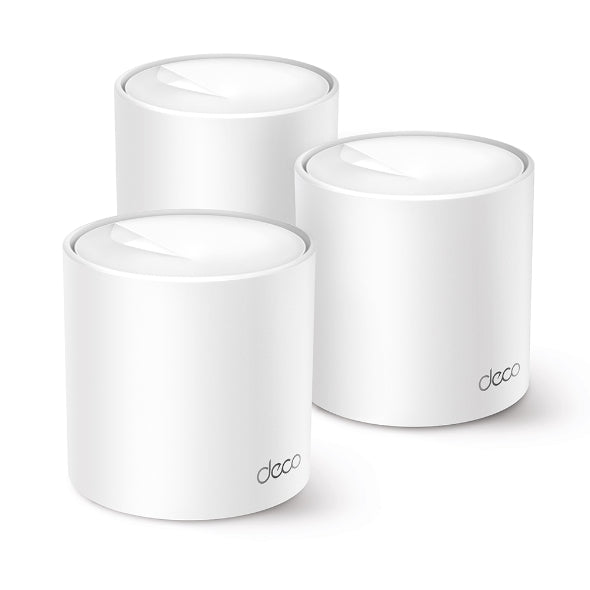

Deco X10 (3-pack)
3 Deco X10 Units
1 RJ45 Ethernet Cable
3 Power Adapters
Quick Installation GuideDeco X10 (2-pack)
2 Deco X10 Units
1 RJ45 Ethernet Cable
2 Power Adapters
Quick Installation Guide
Deco X10 (1-pack)
1 Deco X10 Unit
1 RJ45 Ethernet Cable
1 Power Adapter
Quick Installation Guide
|
| Otros |
| Requisitos del Sistema |
Android 5.0 or later
iOS 9.0 or later
*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information. |
| Certificaciones |
CE, FCC, RoHS, JPA, JRF, VCCI, NCC, BSMI |
| Ambiente |
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
