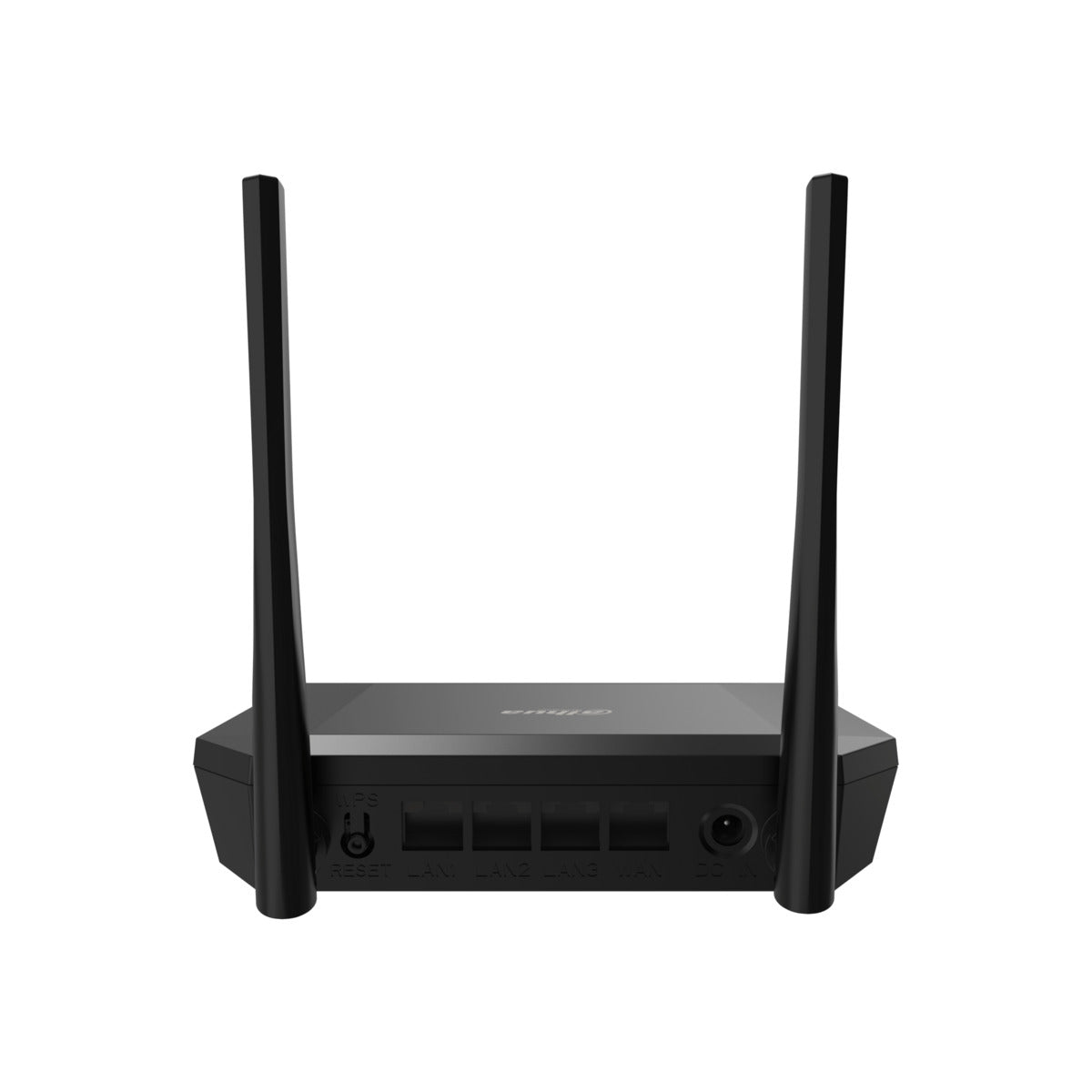

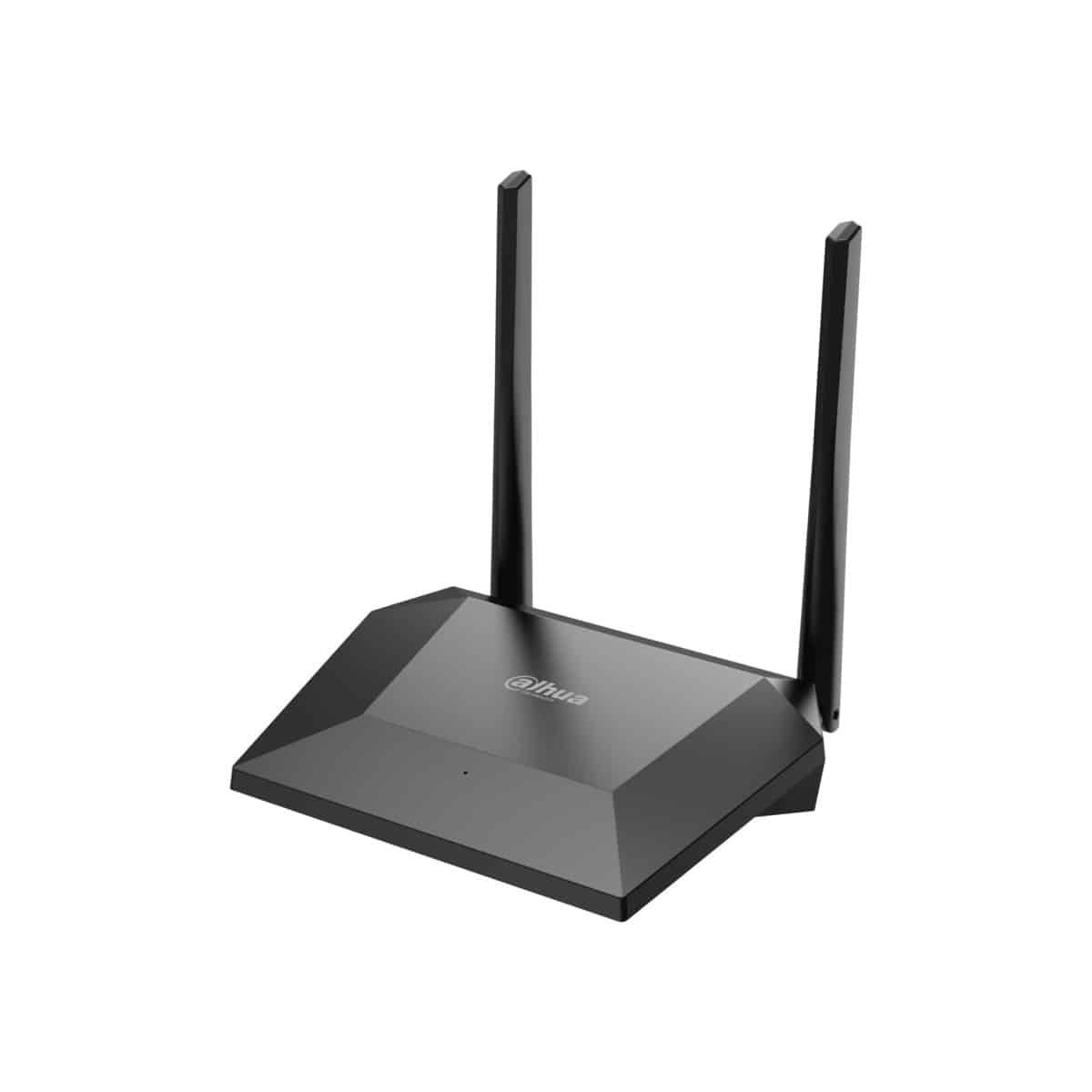

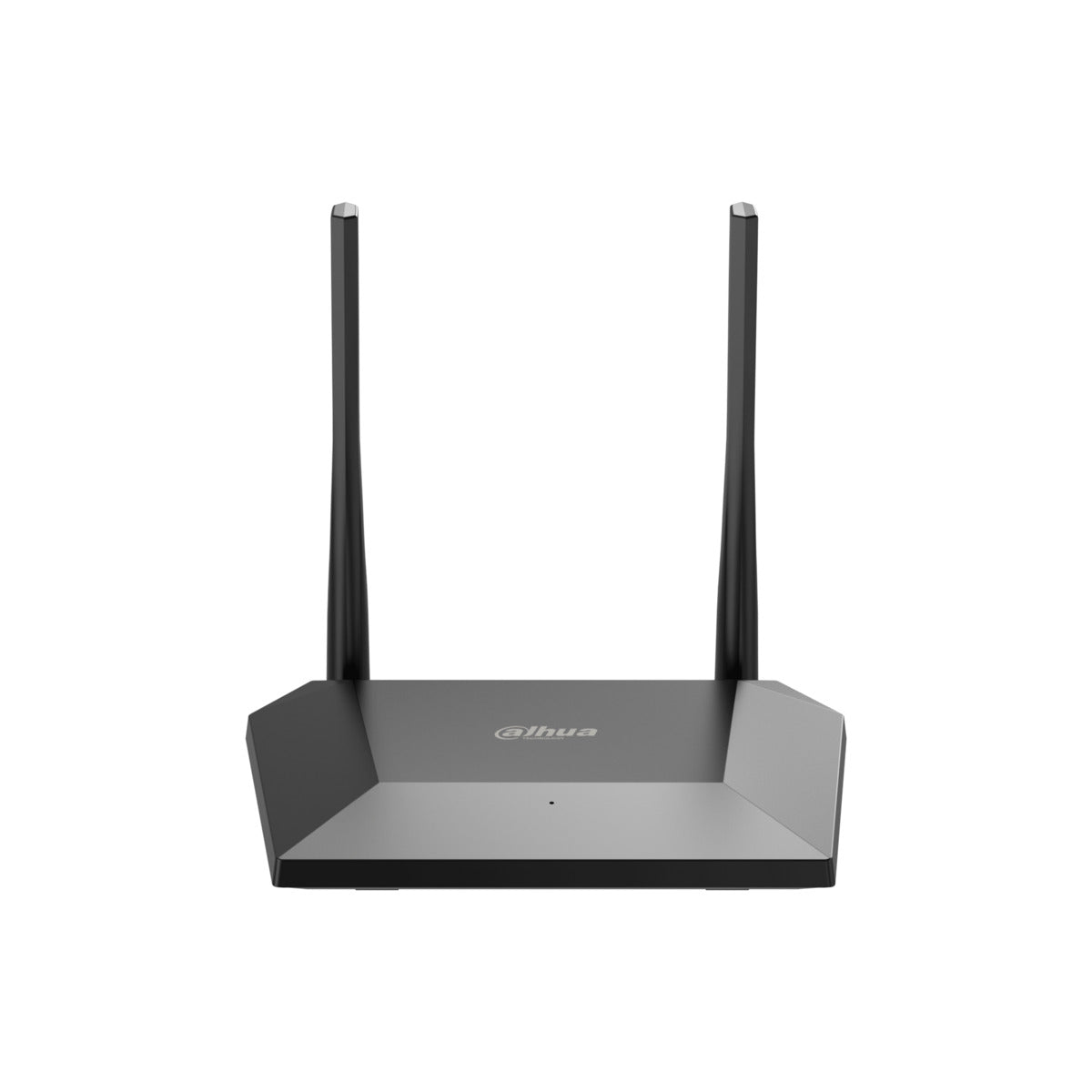

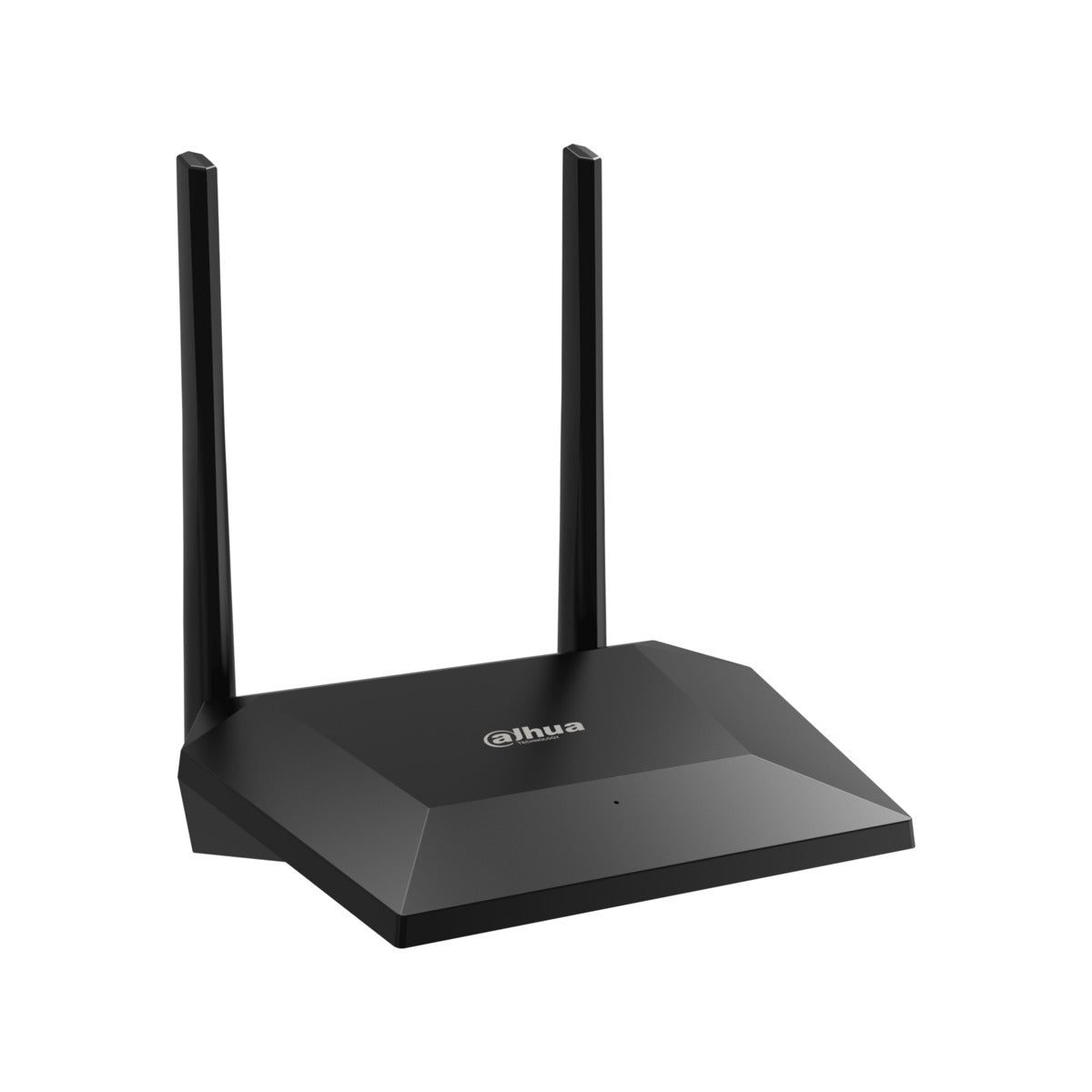

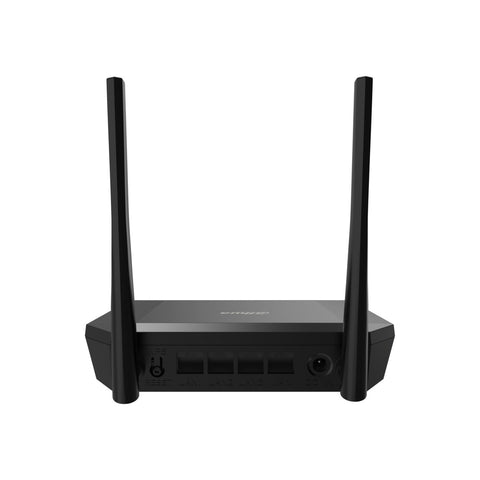

Router Dahua Inalambrico N300 2 Antenas (Dh-N3)

Hardware

Ethernet Ports

1 × 10/100 Mbps WAN port
3 × 10/100 Mbps LAN port

Power Supply

12 VDC, 0.5 A

Power Consumption

3.2 W

Indicator Light

1 × Two-color light indicator

Buttons

1 × WPS/Reset button

Wireless Standard

IEEE 802.11b/g/n

Performance

Operating Frequency

2.412 GHz–2.484 GHz

Wireless Speed

2.4 Ghz: 300 Mbps (802.11n)

Max. Output Power

CE EIRP:

≤20 dBm@2400-2483.5 MHz;

FCC output power:

≤30 dBm@2400-2483.5 MHz

Antenna

2 × External omnidirectional antenna

Antenna Gain

3 dBi

Operating Mode

Router mode
Repeater mode

Channel

1–13

Channel Width

20 MHz
40 MHz

Function

WAN Types

DHCP
PPPOE
Static IP

Encryption Mode

WPA-PSK
WPA2-PSK
WPA2-Mixed

Firmware Update

Web update

DHCP

DHCP server
Address reservation

NAT Forwarding

Port Forwarding
DMZ
UPnP

Quality of Service

QoS by device

General

Operating Temperature

–10 °C to +40 °C (+14 °F to +104 °F)

Storage Temperature

–20 °C to +70 °C (–4 °F to +158 °F)

Operating Humidity

10%–90% (RH)

Gross Weight

0.303 kg (0.67 lb)

Net Weight

0.125 kg (0.28 lb)

Product Dimensions

172.0 mm × 121.0 mm × 33 mm (6.77" × 4.76" × 1.30") (L × W × H)

Packaging Dimensions

218.0 mm × 245.0 mm × 45.0 mm ( 8.58" × 9.65" × 1.77") (L × W × H)

Installation

Desktop mount

Packing List

1 × Devices
1 × Power adapter
1 × Twisted pair cables
1 × User manual
1 × Laws and regulations manual
